商用繼電器

在自動化領域中實現實現開閉、隔離、監控、放大或倍增的電控功能。

型號AHQ AHQSS105DM2FA0GAMI AMISH2115A00GAHQ AHQSH112LM100GAMI AMISH2230A00G

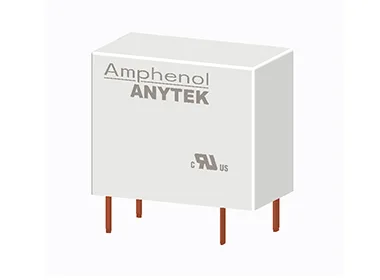

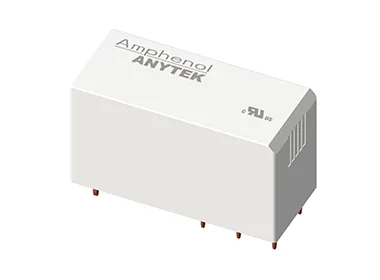

圖片AHQ AHQSS105DM2FA0GAMI AMISH2115A00GAHQ AHQSH112LM100GAMI AMISH2230A00G
料號AHQSS105DM2FA0GAMISH2115A00GAHQSH112LM100GAMISH2230A00G
外型尺寸18.2*10.0*14.9mm29.0*15.8*12.6mm18.2*10.0*14.9mm29.0*15.8*12.6mm
開關型式SPST One Form ADPDTSPST One Form ADPDT
接點規格1A 16A/277VAC 16A/24VDC TV-8,120VAC8A/250VAC;8A/30VDC1A 10A/250VAC 12A/125VAC 10A/30VDC8A/250VAC;8A/30VDC
額定電壓5V115V AC12V230V AC
線圈功耗0.36W0.88W(50HZ)/0.73W(50HZ)0.2W0.79W(50HZ)/0.63W(50HZ)

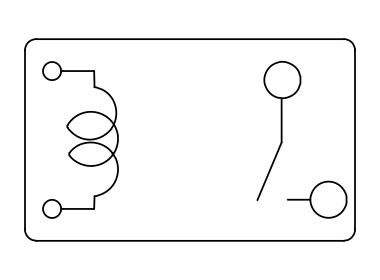

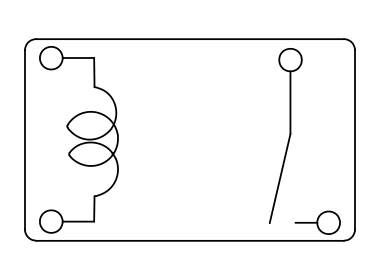

線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)

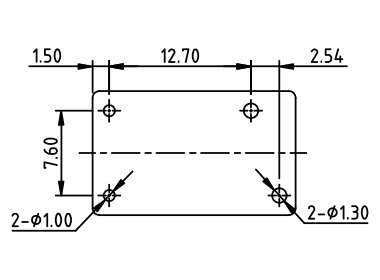

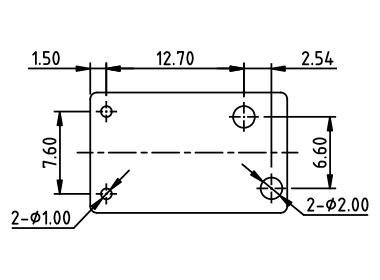

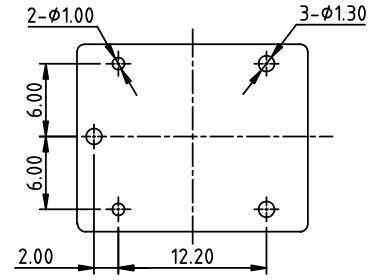

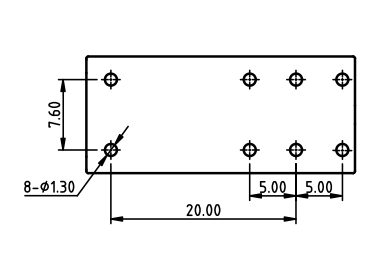

PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)
安規認證
型號AHQ AHQSH112LM1F00GAHQ AHQSH112DM2F00GAHQ AHQSH115LM1F00GAHQ AHQSH124LM100G
圖片AHQ AHQSH112LM1F00GAHQ AHQSH112DM2F00GAHQ AHQSH115LM1F00GAHQ AHQSH124LM100G
料號AHQSH112LM1F00GAHQSH112DM2F00GAHQSH115LM1F00GAHQSH124LM100G
外型尺寸18.2*10.0*14.9mm18.2*10.0*14.9mm18.2*10.0*14.9mm18.2*10.0*14.9mm
開關型式SPST One Form ASPST One Form ASPST One Form ASPST One Form A
接點規格1A 10A/250VAC 12A/125VAC 10A/30VDC1A 16A/277VAC 16A/24VDC TV-8,120VAC1A 10A/250VAC 12A/125VAC 10A/30VDC1A 10A/250VAC 12A/125VAC 10A/30VDC
額定電壓12V12V15V24V
線圈功耗0.2W0.36W0.2W0.2W
線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)
PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)
安規認證
型號AHQ AHQSH124LM1F00GAWH AWHSH105D00GAWH AWHSH112D00GAWH AWHSH112DM00G

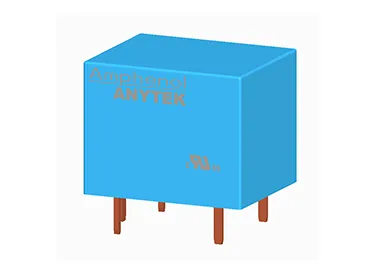

圖片AHQ AHQSH124LM1F00GAWH AWHSH105D00GAWH AWHSH112D00GAWH AWHSH112DM00G
料號AHQSH124LM1F00GAWHSH105D00GAWHSH112D00GAWHSH112DM00G
外型尺寸18.2*10.0*14.9mm19.0*15.4*15.0mm19.0*15.4*15.0mm19.0*15.4*15.0mm
開關型式SPST One Form ASPDT One Form CSPDT One Form CSPST One Form A
接點規格1A 10A/250VAC 12A/125VAC 10A/30VDC1C 12A/250VAC 15A/120VAC 15A/24VDC1C 12A/250VAC 15A/120VAC 15A/24VDC1A 12A/250VAC 15A/120VAC 15A/24VDC
額定電壓24V5V12V12V
線圈功耗0.2W0.36W0.36W0.36W

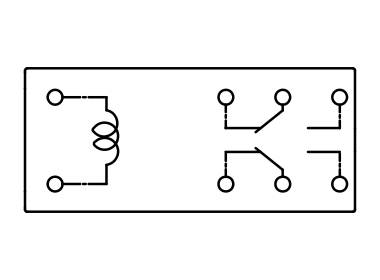

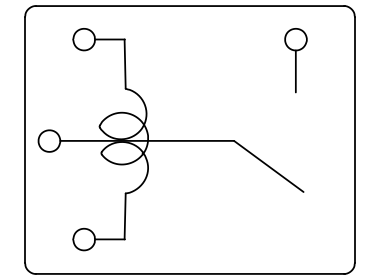

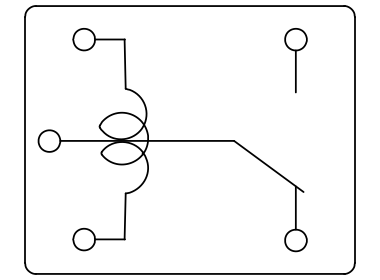

線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)

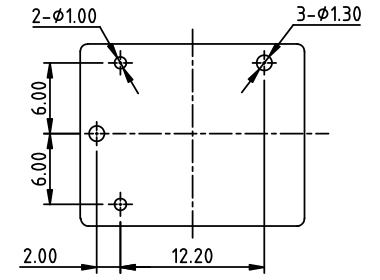

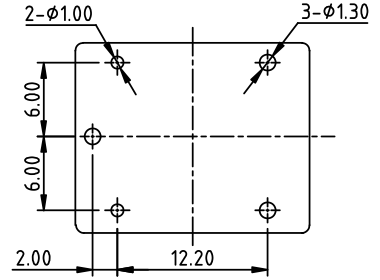

PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)
安規認證
