商用繼電器

在自動化領域中實現實現開閉、隔離、監控、放大或倍增的電控功能。

型號	AHQ AHQSS105DM2FA0G	AMI AMISH2115A00G	AHQ AHQSH112LM100G	AMI AMISH2230A00G
圖片
料號	AHQSS105DM2FA0G	AMISH2115A00G	AHQSH112LM100G	AMISH2230A00G
外型尺寸	18.210.014.9mm	29.015.812.6mm	18.210.014.9mm	29.015.812.6mm
開關型式	SPST One Form A	DPDT	SPST One Form A	DPDT
接點規格	1A 16A/277VAC 16A/24VDC TV-8,120VAC	8A/250VAC;8A/30VDC	1A 10A/250VAC 12A/125VAC 10A/30VDC	8A/250VAC;8A/30VDC
額定電壓	5V	115V AC	12V	230V AC
線圈功耗	0.36W	0.88W(50HZ)/0.73W(50HZ)	0.2W	0.79W(50HZ)/0.63W(50HZ)
線路圖 (底視圖)
PCB佈局(底視圖)
安規認證

型號	AHQ AHQSH112LM1F00G	AHQ AHQSH112DM2F00G	AHQ AHQSH115LM1F00G	AHQ AHQSH124LM100G
圖片
料號	AHQSH112LM1F00G	AHQSH112DM2F00G	AHQSH115LM1F00G	AHQSH124LM100G
外型尺寸	18.210.014.9mm	18.210.014.9mm	18.210.014.9mm	18.210.014.9mm
開關型式	SPST One Form A	SPST One Form A	SPST One Form A	SPST One Form A
接點規格	1A 10A/250VAC 12A/125VAC 10A/30VDC	1A 16A/277VAC 16A/24VDC TV-8,120VAC	1A 10A/250VAC 12A/125VAC 10A/30VDC	1A 10A/250VAC 12A/125VAC 10A/30VDC
額定電壓	12V	12V	15V	24V
線圈功耗	0.2W	0.36W	0.2W	0.2W
線路圖 (底視圖)
PCB佈局(底視圖)
安規認證

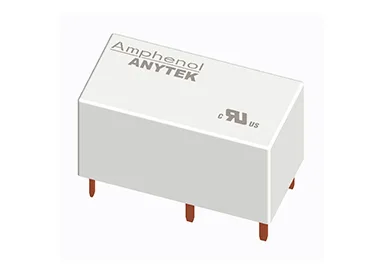

型號	AHQ AHQSH124LM1F00G	AWH AWHSH105D00G	AKE AKE106D00G	AKE AKE109D00G
圖片
料號	AHQSH124LM1F00G	AWHSH105D00G	AKE106D00G	AKE109D00G
外型尺寸	18.210.014.9mm	19.015.415.0mm	20.010.010.5mm	20.010.010.5mm
開關型式	SPST One Form A	SPDT One Form C	SPDT One Form C	SPDT One Form C
接點規格	1A 10A/250VAC 12A/125VAC 10A/30VDC	1C 12A/250VAC 15A/120VAC 15A/24VDC	1C;5A/250VAC;5A/30VDC	1C;5A/250VAC;5A/30VDC
額定電壓	24V	5V	6V	9V
線圈功耗	0.2W	0.36W	0.2W	0.2W

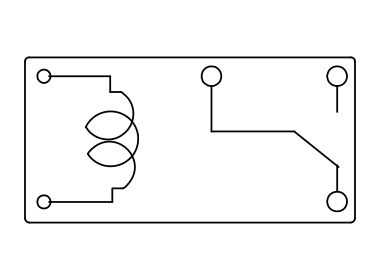

線路圖 (底視圖)

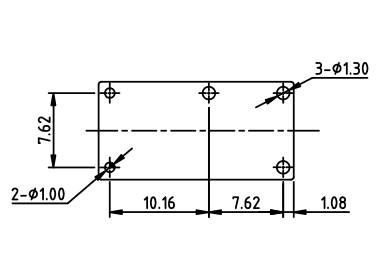

PCB佈局(底視圖)
安規認證
