螺釘式插頭

配套PCB插座使用，提供多种接线方式

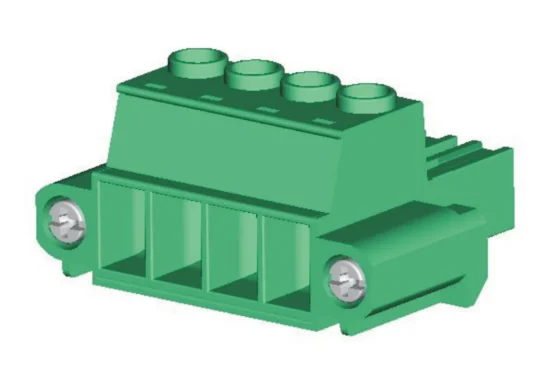

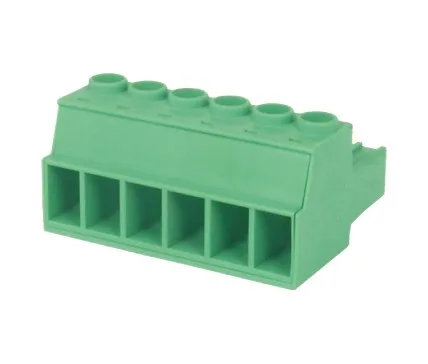

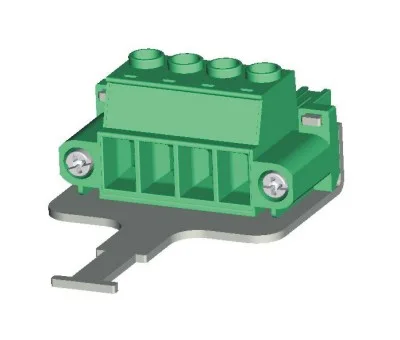

型號ET7.62 W/Flange Match VC three tail type seriesET7.62 Match VC three tail type seriesET7.62 W/Flange With handle Match KT seriesET7.62 W/Flange Match KT series
圖片ET7.62 W/Flange Match VC three tail type seriesET7.62 Match VC three tail type seriesET7.62 W/Flange With handle Match KT seriesET7.62 W/Flange Match KT series
料號ETxx025G0000GETxx025E0000GETxx025D0000GETxx025C0000G
間距 (mm)7.627.627.627.62
位數2P-16P2P-16P3P/4P2P-16P
額定電壓300V300V600V600V
額定電流41A41A41A41A
安規認證

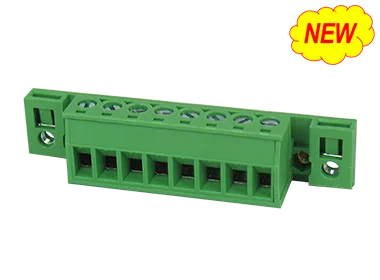

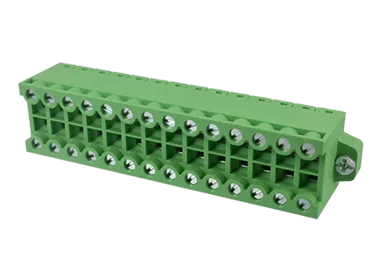

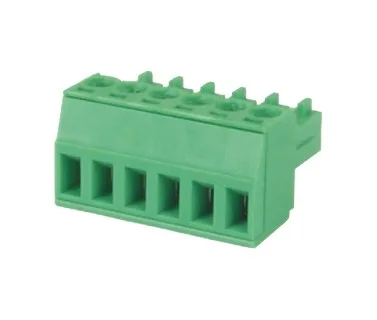

型號ET7.62 Match KT seriesE56.35 Screw typeV85.08 Flange With Nut Through the panel typeTJ3.5
圖片ET7.62 Match KT seriesE56.35 Screw typeV85.08 Flange With Nut Through the panel typeTJ3.5
料號ETxx025A0000GE5xx01500000GV8xx51530000GTJxx11530000G
間距 (mm)7.626.355.083.5
位數2P-16P2*3P-2*24P2P-18P2P-24P
額定電壓600V300V300V300V
額定電流41A6A20A10A
安規認證

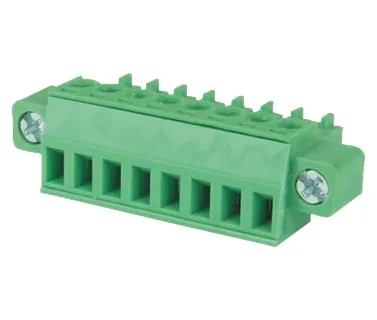

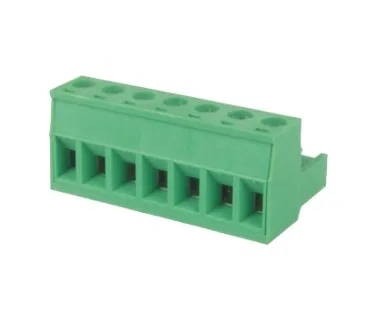

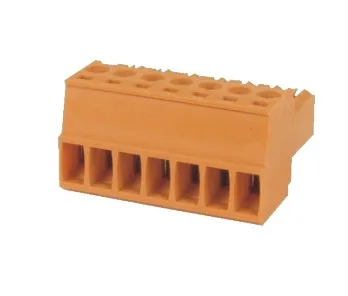

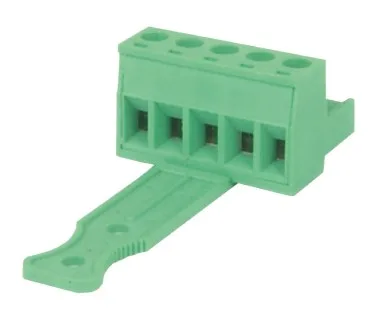

型號TJ3.5 With FlangeE23.5TJ5.0 Contact on down sideTJ5.0/5.08 With Handle
圖片TJ3.5 With FlangeE23.5TJ5.0 Contact on down sideTJ5.0/5.08 With Handle
料號TJxx11520000GE2xx11300000GTJxx71500000GTJxx7/51540000G
間距 (mm)3.53.55.05.0/5.08
位數2P-24P2P-24P2P-24P2P-24P
額定電壓300V300V300V300V
額定電流10A10A12A12A
安規認證
