商用繼電器

在自動化領域中實現實現開閉、隔離、監控、放大或倍增的電控功能。

型號AKE AKE106D00GAKE AKE109D00GAKE AKE112D00GAKE AKE112DM00G
圖片AKE AKE106D00GAKE AKE109D00GAKE AKE112D00GAKE AKE112DM00G
料號AKE106D00GAKE109D00GAKE112D00GAKE112DM00G
外型尺寸20.0*10.0*10.5mm20.0*10.0*10.5mm20.0*10.0*10.5mm20.0*10.0*10.5mm
開關型式SPDT One Form CSPDT One Form CSPDT One Form CSPST One Form A
接點規格1C;5A/250VAC;5A/30VDC1C;5A/250VAC;5A/30VDC1C;5A/250VAC;5A/30VDC1A;8A/250VAC;8A/30VDC
額定電壓6V9V12V12V
線圈功耗0.2W0.2W0.2W0.2W

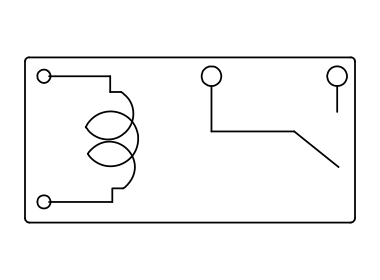

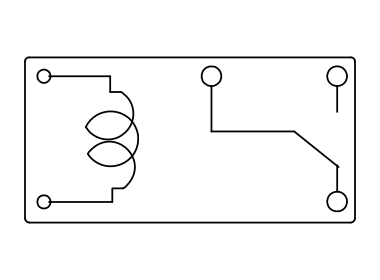

線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)線路圖 (底視圖)

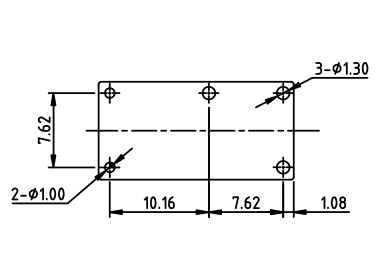

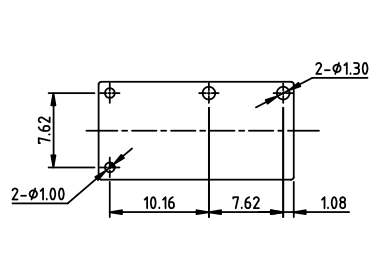

PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)PCB佈局(底視圖)
安規認證
