單層式
産品提供隔板設計,方便不同的線路接線保護與導引。

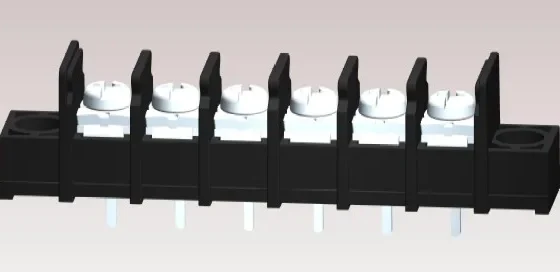

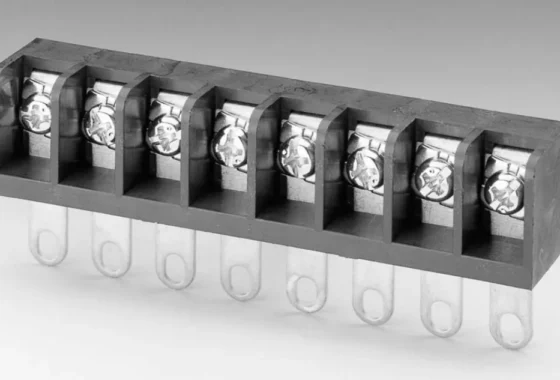

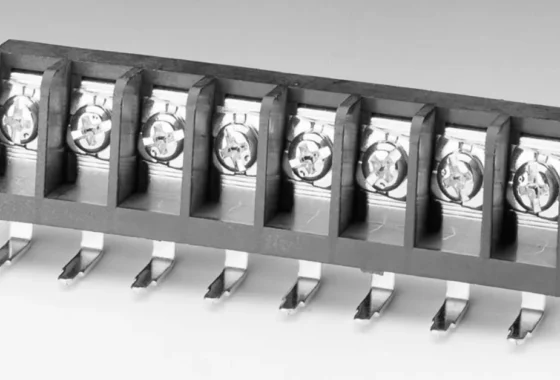

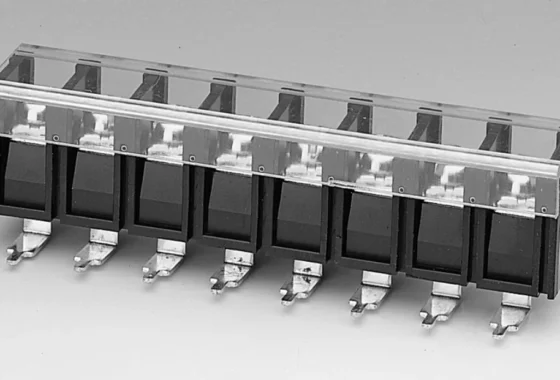

| 型號 | YK554 | YK553 | YK302 With Flange & W/O Cover | YK605 With Cover |
|---|---|---|---|---|
| 圖片 |  |  |  |  |
| 料號 | YK554xx0xx00G | YK553xx0xx00G | YK302xx3xx00G | YK605xx2xx00G |
| 間距 (mm) | 11.0 | 11.0 | 7.62 | 10.0 |
| 位數 | 2P-30P | 2P-30P | 2P-18P | 2P-30P |
| 額定電壓 | 300V | 300V | 300V | 300V |
| 額定電流 | 30A | 30A | 15A | 20A |
| 安規認證 |  | | | |

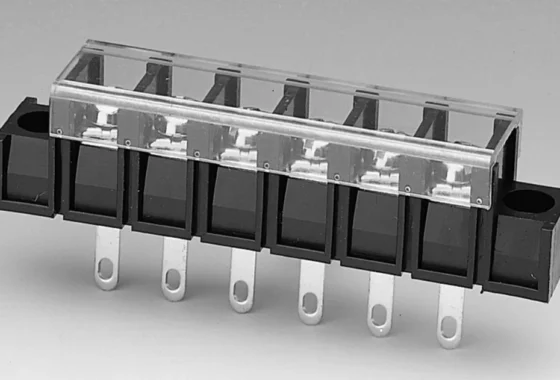

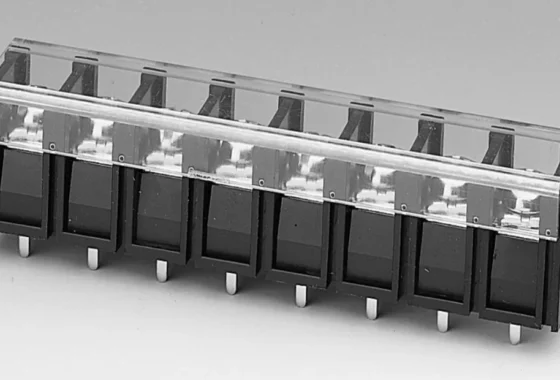

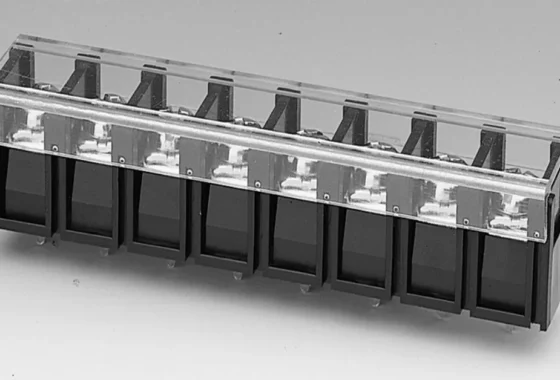

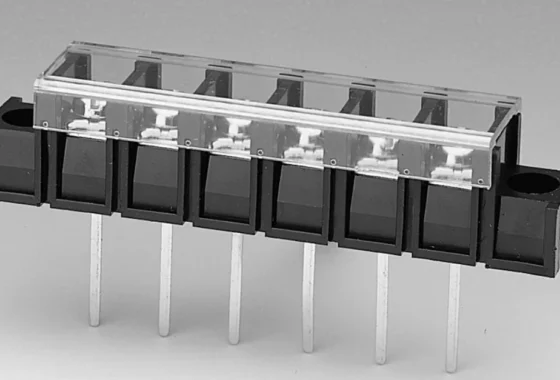

| 型號 | YK604 With Cover | YK603 With Cover | YK602 With Cover | YK601 With Cover |
|---|---|---|---|---|
| 圖片 |  |  |  |  |
| 料號 | YK604xx2xx00G | YK603xx1xx00G | YK602xx1xx00G | YK601xx2xx00G |
| 間距 (mm) | 10.0 | 10.0 | 10.0 | 10.0 |
| 位數 | 2P-30P | 2P-30P | 2P-30P | 2P-30P |
| 額定電壓 | 300V | 300V | 300V | 300V |
| 額定電流 | 20A | 20A | 20A | 20A |
| 安規認證 | | | | |
| 型號 | YK50A W/O Cover | YK902 With Flange & With Cover | YK902 W/O Flange & With Cover | YK902 W/O Flange & W/O Cover |
|---|---|---|---|---|
| 圖片 |  |  |  |  |
| 料號 | YK50Axx0xx00G | YK902xx1xx00G | YK902xx2xx00G | YK902xx0xx00G |
| 間距 (mm) | 9.5 | 16.0 | 16.0 | 16.0 |
| 位數 | 2P-18P | 2P-10P | 2P-10P | 2P-10P |
| 額定電壓 | 300V | 600V | 600V | 600V |
| 額定電流 | 30A | 65A | 65A | 65A |
| 安規認證 |  | | | |
