螺釘式插頭
配套PCB插座使用，提供多种接线方式
| 型號 | KI3.81 W/Flange | KI3.81 | KV5.08 Flange with screw & High profile | KV5.08 With hook & High profile |
|---|---|---|---|---|
| 圖片 |  |  |  |  |
| 料號 | KIxx30520000G | KIxx30500000G | KVxx50540000G | KVxx50530000G |
| 間距 (mm) | 3.81 | 3.81 | 5.08 | 5.08 |
| 位數 | 2P-24P | 2P-24P | 2P-24P | 2P-24P |
| 額定電壓 | 300V | 300V | 300V | 300V |
| 額定電流 | 7A | 7A | 10A | 10A |
| 安規認證 |  | |  | |
| 型號 | KV5.08 Flange with nut & Low profile | KV5.08 Flange with screw & Low profile | KV5.08 With hook & Low profile | KI5.08 W/Flange With high profile |
|---|---|---|---|---|
| 圖片 |  |  |  |  |
| 料號 | KVxx50520000G | KVxx50510000G | KVxx50500000G | KIxx50530000G |
| 間距 (mm) | 5.08 | 5.08 | 5.08 | 5.08 |
| 位數 | 2P-24P | 2P-24P | 2P-24P | 2P-24P |
| 額定電壓 | 300V | 300V | 300V | 300V / 300V |
| 額定電流 | 10A | 10A | 10A | 8A / 10A |
| 安規認證 | | | | |

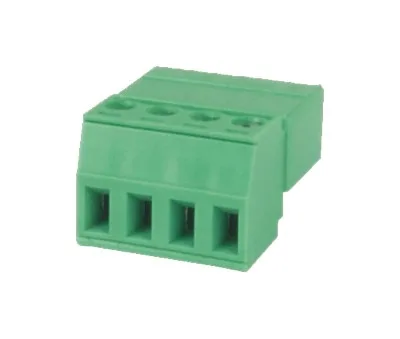

| 型號 | KI5.08 With high profile | V83.81 Flange With Nut | V83.81 | AR5.08 |
|---|---|---|---|---|
| 圖片 |  |  |  |  |
| 料號 | KIxx50510000G | V8xx31510000G | V8xx31500000G | AR0000000000G |
| 間距 (mm) | 5.08 | 3.81 | 3.81 | 5.08 |
| 位數 | 2P-24P | 2P-24P | 2P-24P | — |
| 額定電壓 | 300V / 300V | 300V | 300V | — |
| 額定電流 | 8A / 10A | 8A | 8A | — |
| 安規認證 | | | |  |
