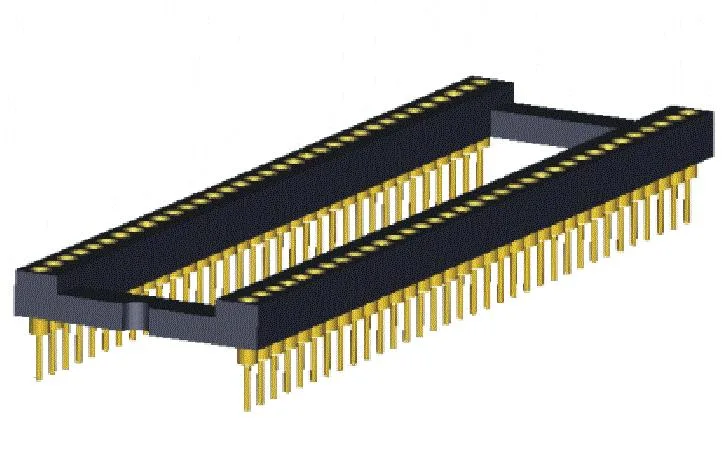

| 型號 | SO W/O bar |
|---|---|
| 間距 (mm) | 1.778 |
| PIN 數 | 01-32 |
| 料號 | SOxxx2x00000G |
Specifications
Materials Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Clip(contact 6 finger) : Beryllium copper,heat treated Plating(outer sleeve) : Tin plated : 2u"m/80u"nickel,5um/200u"Tin Gold plated: 2u"m/80u"nickel,full gold Plating clip(contact): 2um/80u"nickel,gold or tin plating(see TABLE-4) Insulator body(black) : Glass filled polyester Valox (UL94V-0) (housing) Electrical Current rating : 3 Amps/contact max. Contact resistance : ≦4mΩ /contact Insulation resistance : ≧1000MΩ at V=100V Operating voltage : 60 AC/DC Mechanical Average insertion force with steel pin of φ0.43mm/0.017": < 250g Average withdrawal force with steel pin of φ0.43mm/0.017": >50g Mechanical life : min.200 Operating temperature : Gold plated :-55℃ to +125℃, (Continuous) -67℉ to +257℉ Tin plated : -40℃ to +105℃ Application Solderability (IEC 60068-2-54 Ta) :245℃±3℃, 5s Resistance to soldering heat : (IEC 68-2-20 Tb) :260℃, 5s Max
How to order
