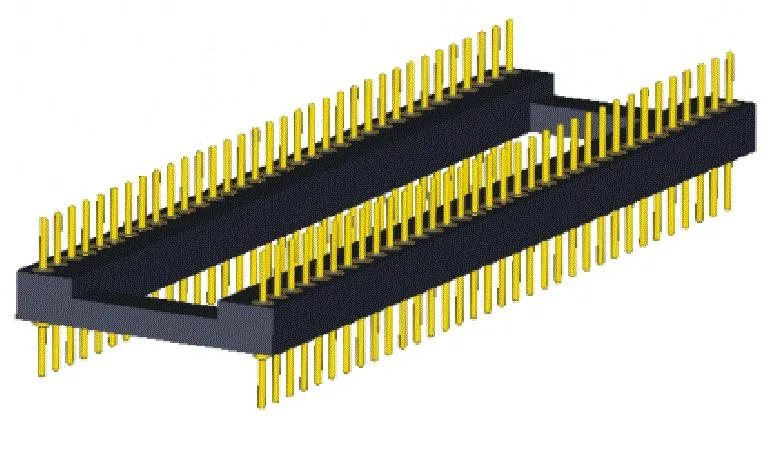

| 型號 | SG W/O bar |
|---|---|
| 間距 (mm) | 1.778 |
| PIN 數 | / |
| 料號 | SG6472x00000G |
Specifications
Materials Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin Gold plated: 2um/80u"nickel,Full gold flash Insulator body(housing) : Glass filled thermoplastic polyester UL94V-0 Electrical Current rating : 3 Amps/contact max. Insulation resistance : ≧ 10000MΩ at 500VAC Rated voltage : 100VRMS /150VDC Mechanical Operating temperature : Gold plated: -55℃ to +125℃ (Continuous) -67℉ to +105℉ Tin plated: -40℃ to +105℃ Environmental data Solderability (IEC 60068-2-20. Ta) :235℃ ,2s Resistance to soldering heat (IEC 60068-2-20. Tb) : -Through hole mount components :260℃, 10s
How to order
