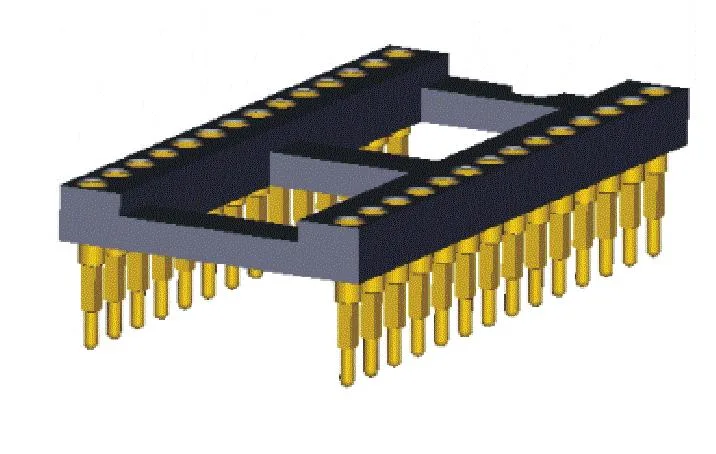

SC With bar

Specifications

Materials
 Pin (outer sleeve) : Brass,machined, CuZn38Pb2
 Clip(contact 4 finger) : Beryllium copper,heat treated or PHBZ
 Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
 Gold plated: 2um/80u"nickel,full gold
 Plating clip(contact): 2um/80u"nickel,gold or tin plating
 Insulator body(black) : Glass filled thermoplastic polyester UL94V-0

Electrical
 Current rating : 3 Amps/contact max.
 Contact resistance : ≦4mΩ /contact
 Insulation resistance : ≧10000MΩ at 500VAC
 Rated voltage : 100VRMS / 150VDC

Mechanical
 Operating temperature : Gold plated: -55℃ to +125℃,
 (Continuous) -67℉ to +257℉
 Tin plated : -40℃ to +105℃
 Average insertion force with steel pin of φ0.43mm/0.017": < 250g
 Average withdrawal force with steel pin of φ0.43mm/0.017": >50g
 Mechanical life : min.200
 Compliant pin for solderless mount into P.C.B
 Plated-thru holes: φ1.0mm+0.05/-0.00mm

Application
 1.The open frame is most common type.
 2.The open body design gives better access (for cleaning and inspections) to air-cooling.
 3.Side and end stackable.
 4.High retention design prevents IC walkout during heavy vibration.
 5.Pin design absolutely prevents 100% of the solder wicking And flux entrapment.
 6.Twist free construction.
 7.Low prolfile type
 8.No need to flux and solder. Press-fit provides high reliability

How to order
