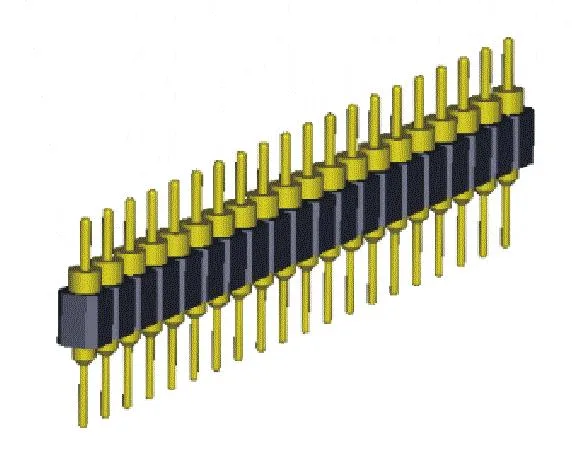

| 型號 | SB Single row |
|---|---|
| 間距 (mm) | 2.54 |
| PIN 數 | 1-64 |
| 料號 | SBxx00x00000G |
Specifications
Materials Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Plating : Tin plated : 2um/80u"nickel,5um/200u"Tin Gold plated: 2um/80u"nickel,full gold Insulator body(black): Glass filled polyester UL94V-0 Electrical Current rating : 3 Amps/contact max. Insulation resistance : ≧10000MΩ at 500VAC Rated voltage : 100VRMS / 150VDC
How to order
