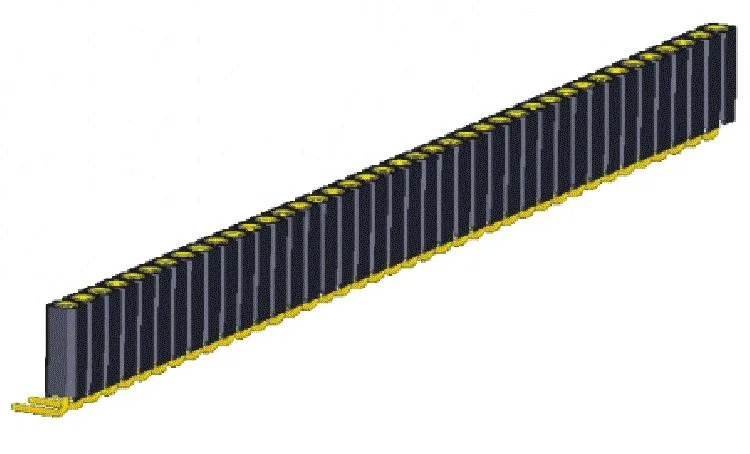

RC Single row

Specifications

Materials
 Pin (outer sleeve) : Brass,machined, CuZn38Pb2
 Clip(contact 6 finger): Beryllium copper,heat treated or PHBZ
 Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
 Gold plated: 2um/80u"nickel,Full gold
 Plating(contact) : 2um/80u"nickel,gold or Tin plating
 Insulator body(housing) : PPS. UL 94V-0

Electrical
 Current rating : 3 Amps/contact max.
 Contact resistance : ≦4mΩ /contact
 Insulation resistance : ≧10000MΩ at 500VAC
 Rated voltage : 100VRMS /150VDC

Mechanical
 Operating temperature : Gold plated: -55℃ to +125℃
 (Continuous) Tin plated: -40℃ to +105℃
 Average insertion force: <140g
 With steel pin of φ0.66mm or SQ 0.64mm
 Average withdrawal force: >25g
 With steel pin of φ0.66mm or SQ 0.64mm
 Mechanical life: min.200

Application
 Solderability (IEC 60068-2-20. Ta) :235℃, 2s
 Resistance to soldering heat (IEC 60068-2-20. Tb) :
 -Through hole mount components :260℃, 10s

How to order
