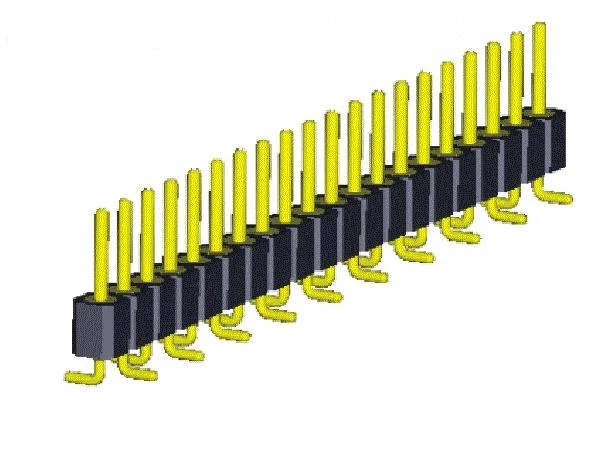

| 型號 | RB Single row |
|---|---|
| 間距 (mm) | 2.54 |
| PIN 數 | 01-40 |
| 料號 | RBxx00x10000G |
Specifications
Materials Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Plating : Tin plated : 2um/80u"nickel,5um/200u"Tin Gold plated: 2um/80u"nickel,full gold Insulator body(black) : Glass filled Hi-temperature thermoplastic UL94V-0 Electrical Current rating : 3 Amps/contact max. Insulation resistance : ≧ 10000MΩ at 500VAC Rated voltage : 100VRMS /150VDC Mechanical Operating temperature : Gold plated: -55℃ to +125℃ (Continuous) -67℉ to +257℉ Tin plated: -40℃ to +105℃ Application 1.The male header contacts are designed for "Sandwich application" Because the pin of φ0.6mm/0.050" can be plugged into a standard IC-contact. 2.3 different heights are available. 3.Low profile type. 4.Side and end stackable. 5.Twist free construction. Environmental data Solderability (IEC 60068-2-20. Ta) :235℃, 2s Resistance to soldering heat (IEC 60068-2-20. Tb) : -SMD mount components :280℃, 10s
How to order
