OU

Specifications

Materials

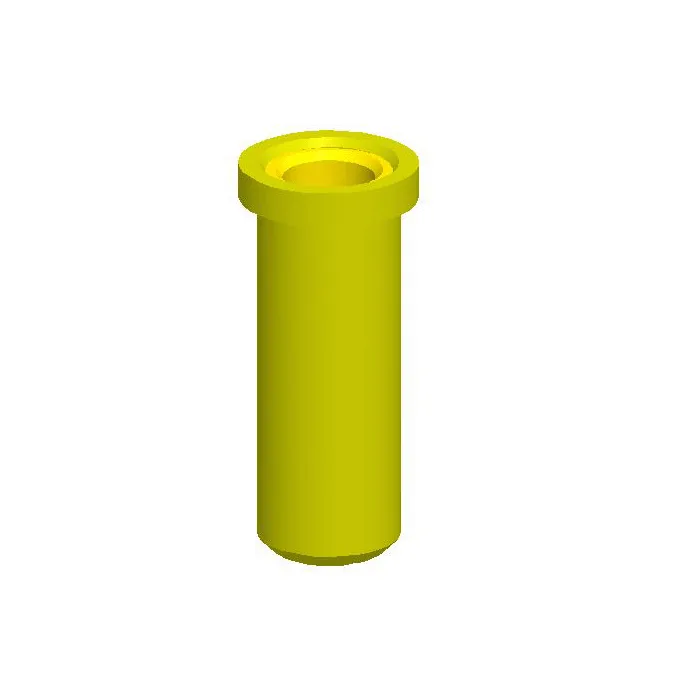

 Pin (outer sleeve) : Brass,machined, CuZn38Pb2
 Clip(contact 4 finger): Beryllium copper,heat treated
 Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
 Gold plated : 2um/80u"nickel,Full gold flash
 Plating(contact) : 2um/80u"nickel,gold or Tin plating(See TABLE)

Electrical
 Current rating : 3 Amps/contact max.
 Current resistance : <4mΩ /contact.

Mechanical
 Average insertion force with steel pin of φ1.05mm/0.041": 4-finger≦350g
 Average withdrawal force with steel pin of φ1.05mm/0.041": 4-finger≧55g
 Mechanical life: min.200

How to order
