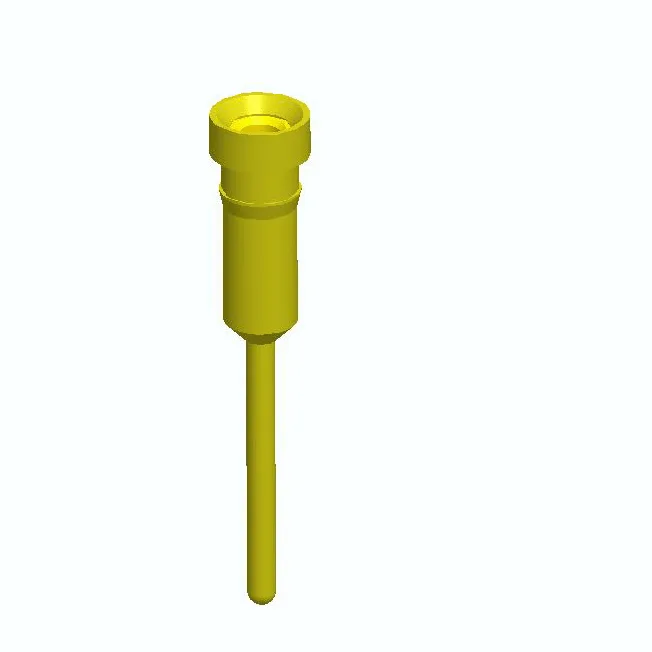

OF

Specifications

Materials
 Pin (outer sleeve) : Brass,machined, CuZn38Pb2
 Clip(contact 4/6finger): Beryllium copper,heat treated or PHBZ
 Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
 Gold plated : 2um/80u"nickel,Full gold flash
 Plating(contact) : 2um/80u"nickel,gold or Tin plating(See TABLE)

Electrical
 Current rating : 3 Amps/contact max.
 Current resistance : <4mΩ /contact.

Mechanical
 Average insertion force with steel pin of φ0.43mm/0.017": 4-finger≦250g.
 Average withdrawal force with steel pin of φ0.43mm/0.017": 4-finger≧50g
 Mechanical life: min.200

How to order
